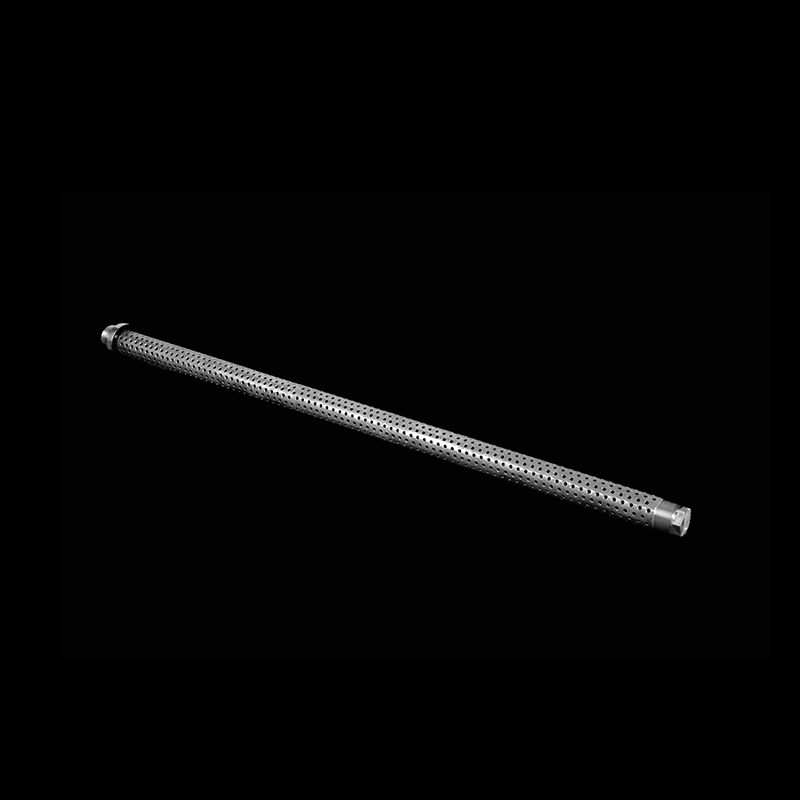

Metal Filter Cartridge Support Frame

Chemical Fiber Production: A metal filter cartridge support frame is used in polymer melt filtration systems to provide mechanical support for filter media and maintain stable operation during continuous fiber production. The Stainless Steel Filter Core Support helps protect filtration components from deformation under production pressure.
Plastic Extrusion Industry: Applied in extrusion filtration equipment to reinforce filter structures and improve resistance against melt flow impact. The Metal Cartridge Reinforcement Frame supports longer operating stability in polymer processing environments.
Water Treatment Systems: Suitable for industrial water filtration equipment where internal cartridge strength and structural reliability are required to maintain consistent filtration performance.
Food and Pharmaceutical Processing: Used in filtration systems requiring durable support structures and customized designs for different liquid filtration processes.

Strong Structural Support: Stainless steel support structures combine punched framework and reinforced mesh construction to improve resistance to fluid impact and maintain cartridge shape during operation.
Wide Filtration Compatibility: Supports filtration accuracy from 0.1μm–200μm with tolerance controlled within ±5%, suitable for different industrial filtration requirements.
High Pressure Resistance: Stainless steel-reinforced structures support forward pressure ≥6MPa, helping maintain stable performance in high-pressure filtration environments.
High Temperature Adaptability: Stainless steel support components can operate at temperatures up to ≤450℃, suitable for demanding industrial production conditions.
Reliable Connection Design: Supports clamp, threaded, and flange installation methods, allowing flexible integration with different filtration equipment.
Easy Maintenance: Quick clamp installation design enables tool-free replacement and reduces maintenance time by more than 50% during filter servicing.

Metal Filter Cartridge Support Frame supports customized manufacturing according to different cartridge structures and equipment requirements.
Customized Dimensions: Length, diameter, thickness, and support structure can be adjusted based on filtration equipment specifications.
Material Selection: Stainless steel materials and other metal structures can be selected according to temperature, pressure, and corrosion resistance requirements.
Connection Customization: Supports clamp, threaded, and flange connection designs to match different filtration systems.
Structure Optimization: The Stainless Steel Filter Core Support can be customized with different reinforcement designs to improve compatibility with specific filter media.
Application Support: Technical suggestions are provided according to chemical fiber, plastic extrusion, water treatment, and other industrial applications.

Q1: What is the Metal Filter Cartridge Support Frame used for?
A: It is mainly used to reinforce filter cartridges, improve structural stability, and support filtration media during industrial operation.

Q2: What materials are available for the Metal Cartridge Reinforcement Frame?
A: Stainless steel and other suitable metal materials can be selected according to operating temperature, pressure, and corrosion conditions.

Q3: Can the support frame be customized for existing filter cartridges?
A: Yes. Dimensions, connection methods, and structural designs can be adjusted according to equipment requirements.

Q4: How does the support structure improve filter performance?
A: The reinforced structure helps reduce deformation caused by pressure and flow impact, supporting stable filtration operation.

Q5: What information is required for customized orders?
A: Buyers should provide cartridge size, installation method, operating environment, and required material specifications for evaluation.
